Baincut HSS
Metallography Equipment - Baincut HSS

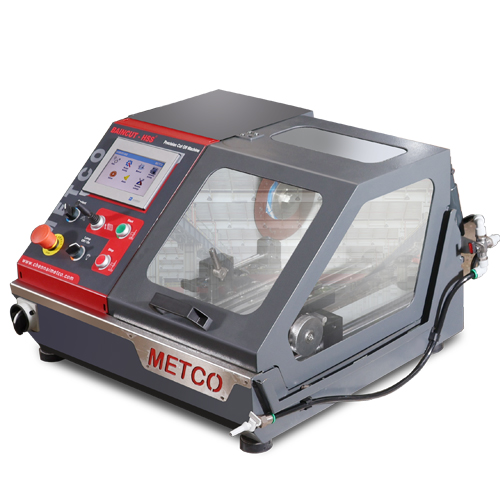

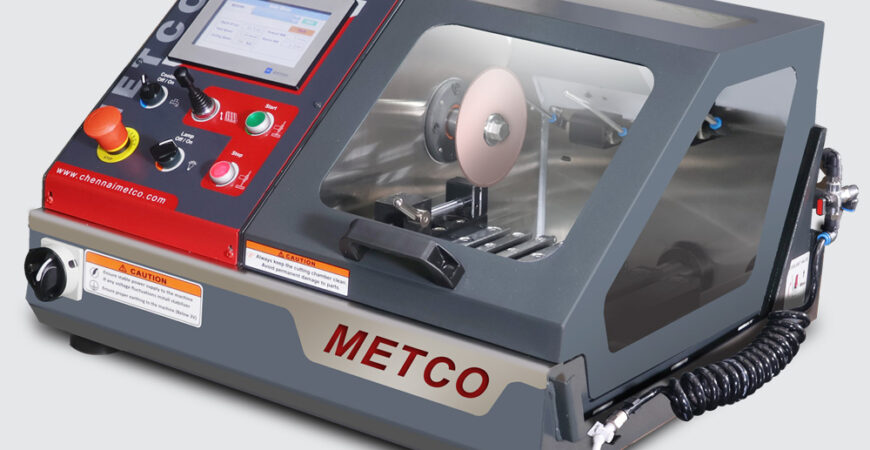

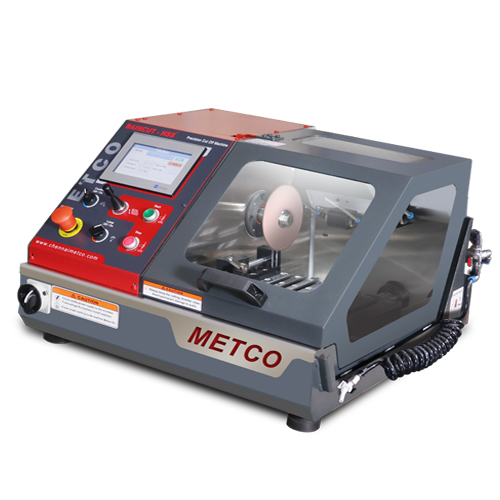

Precision cut off machine
PRODUCT CODE: CMHSS049
- Cutting capacity upto 40 mm dia
- Rotating vise can increase cutting depth
- re-circulation coolant system
- automatic Y-movement ( Longitudinal)
- Variable speed system 100-4000 rpm
- Variable feed rates and cutting length
- Power single phase 1 HP : 220V/50Hz or 110V/60Hz3
- Machine size: 810 x 810 x 550 mm (L X B X H)
The precision saw for cutting all types of materials with variable spindle speed. automated Y movement adds to the convenience. A must for slicing Surface engineered components, hard, Sensitive applications. Preferred by research Laboratories.
A precision section saw designed for cutting all types of materials with ease
Cutting capacity up to 40 mm
Wheel Mounting Shaft OD -12.7 X 25.4 X 31.75 mm
Automatic Cut-Off
Cutting Action – Y Movement Automatic (Longitudinal)
7″ Advance color Graphical touch screen
Variable Feed Rates and Cutting Length
External Recirculation Coolant System with 50 ltrs capacity
1 HP (750 watts) 3 Phase Motor
Continuously Variable speed system 100-4000rpm
Door Limit Switch System
X Movement upto 50 mm
Wheel Should be accommodated Min 3″ to Max 8″ (Wheel Dia)
Electrical: 230 V, 50 Hz ( 1 + N + E )
Machine Size: 810mm x 810mm x 550mm (LxBxH)
Machine Color: Enclosures RAL 7040, Base & Stand RAL 7016
Optional Accessories
Door Safety Interlock System : Additional Safety Feature where the Door cannot be opened unless the Cutting process is stopped
Loto Switch & Tag Out: During Maintenance and Break Downs the Loto Switch can be switched off and locked with the tag key. This prevents from switching on the machine by mistake and avoids damage704
