Nuclear Metallography
Nuclear Metallography Baincut LSS Bainpol VT Bainpol SA
Metallography Equipment Baincut LSS
The precision section saw is designed for slicing all types of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.
Metallography Baincut LSS Plus
The precision section saw is designed for slicing all types of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.

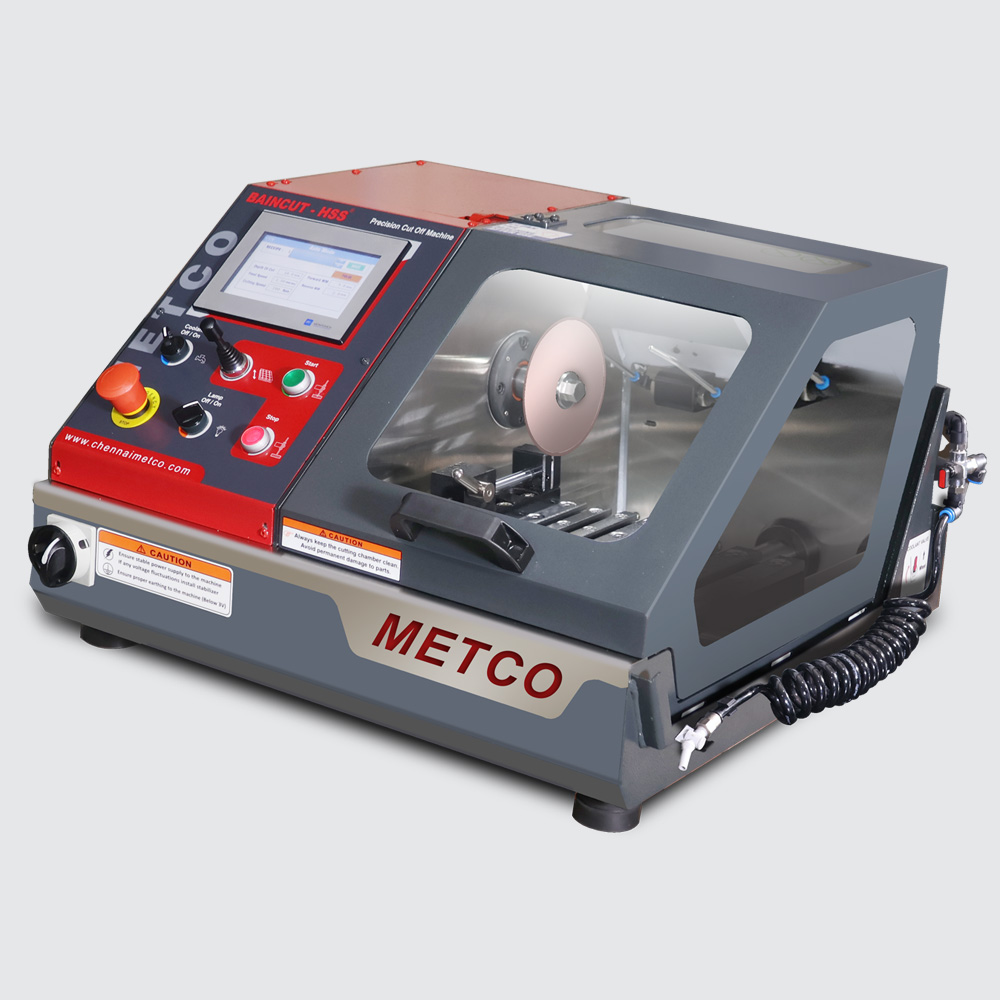

Metallography Equipment Baincut HSS
Metallography Equipment – Baincut HSS Precision cut off machine PRODUCT CODE: CMHSS049 Cutting capacity upto 40 mm dia Rotating vise can increase cutting depth re-circulation coolant system automatic Y-movement ( Longitudinal) Variable speed system 100-4000 rpm Variable feed rates and cutting length Power single phase 1 HP : 220V/50Hz or 110V/60Hz3 Machine size: 810 x […]

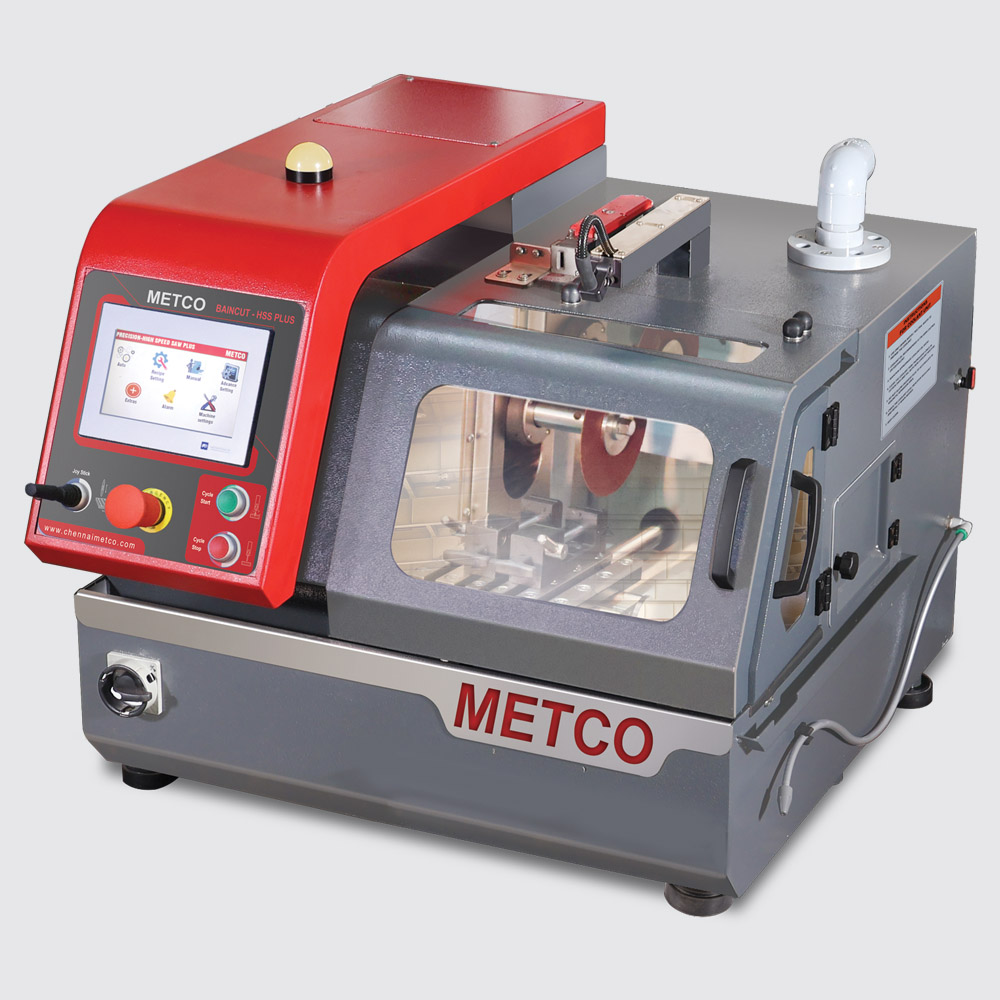

Metallography Equipment Baincut HSS Plus
Metallography Equipment – Baincut HSS Plus Precision cut off machine PRODUCT CODE: CMHSSP060 Cutting capacity up to 50 mm dia “Z” Movement upto 40 mm 2 HP, 3 Phase Motor variable speed 100-5000 rpm Diamond or abrasive wheel upto 8″ ( 200 mm) dia Machine size: 845 x 850 X 600 mm The precision saw for […]
Metallography Equipment Baincut Medium
Metallography Equipment – Baincut Medium PRODUCT CODE: CMM001 Cutting capacity up to 60 mm dia. Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size : 110 X 200 mm with 12 mm T-slot – 2 Nos Machine size: 850mm X 750mm X 1550mm A Popular […]
Metallography Equipment Baincut Medium Table Top – Copy
Metallography Equipment -Baincut Medium Table Top PRODUCT CODE: CMT022 Cutting capacity up to 60 mm dia Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size :110 X 200 mm with 10 mm T-slot – Two Nos Machine size: 700 mm X 600 mm X 580 […]
Metallography Equipment Baincut Medium Auto
Metallography Equipment -Baincut Medium Auto PRODUCT CODE: CMM001A Cutting capacity up to 60 mm dia Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size :110 X 200 mm with 10 mm T-slot – Two Nos Machine size: 1100 mm X 750 mm X 1550 mm […]
Metallography Equipment Baincut Medium Table Top
Metallography Equipment -Baincut Medium Table Top PRODUCT CODE: CMT022 Cutting capacity up to 60 mm dia Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size :110 X 200 mm with 10 mm T-slot – Two Nos Machine size: 700 mm X 600 mm X 580 […]
Metallography Equipment Baincut UM Auto
Metallography Equipment – Baincut UM Auto PRODUCT CODE: CMU002A Cutting action- Automatic “ Y ”movement (Table) with Servo SystemPLC with Graphical Touch Screen DisplayVariable Feed Rate with Cutting LengthPre Set Programming & Data Storage upto 25 programs The Machine offers also manual mode for increased flexibility Cutting capacity up to 80 mm dia Powered by Motor […]
Metallography Equipment Baincut UM
Metallography Equipment – Baincut UM PRODUCT CODE: CMU002 Cutting capacity up to 80 mm dia Powered by Motor 5 HP, 3 phase motor Cut-off wheel dia 12″ (300 mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 2800 rpm Table size : 260 X 260 mm with 10 mm T-slot Machine size: 1100mm X 1300mm X […]
Metallography Equipment Baincut Large
Metallography Equipment – Baincut Large PRODUCT CODE: CML004 Cutting capacity up to 110 mm dia Powered by Motor 7.5 HP, 3 phase motor Cut-off wheel dia 14″ (350mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm Table size : 254 mm X 355 mm X 2 Nos with 12 mm T-slot Machine […]
Metallography Equipment Baincut Large Plus
Metallography Equipment – Baincut Large Plus PRODUCT CODE: CMLP015 Cutting capacity up to 130 mm dia Powered by Motor 10 HP, 3 phase motor Cut-off wheel dia 16″ (400mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm. Table size : 254 mm X 355 mm X 2 Nos with 12 mm T-slot […]
Metallography Equipment Baincut Large Auto
PRODUCT CODE: CML004A Metallography Equipment – Baincut Large Auto Cutting capacity up to 110 mm dia Powered by Motor 7.5 HP, 3 phase motor Cut-off wheel dia 14″ (350mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm Table size : 254 X 355 mm x 2 nos with 12 mm T-slot Machine […]
Metallography Equipment Baincut Large Plus Auto
Metallography Equipment – Baincut Large Plus Auto PRODUCT CODE: CMLP015A Cutting capacity up to 130 mm dia Powered by Motor 10 HP, 3 phase motor Cut-off wheel dia 16″ (400mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm Table size : 254 X 355 mm x 2 nos with 12 mm T-slot […]
Metallography Equipment Baincut XL
Metallography Equipment – Baincut XL PRODUCT CODE: CMXL016 Cutting capacity up to 150 mm dia Powered by Motor 15 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm Coolant tank with 200 L capacity Extra Large heavy-duty cutting machine with Integral sliding door construction. […]
Metallography Equipment Baincut XL Auto
Metallography Equipment – Baincut XL PRODUCT CODE: CMXL016A Cutting capacity up to 150 mm dia Powered by Motor 15 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm Coolant tank with 200 L capacity Automatic Extra Large heavy-duty cutting machine with Integral sliding door […]
Metallography Equipment Baincut XXL Auto
Metallography Equipment – Baincut XXL Auto PRODUCT CODE: CMXXL017A Cutting capacity up to 180 mm dia8 Powered by Motor 30 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm Coolant tank with 200L capacity Table 500 X 500 mm with 12 mm T-slot Machine […]
Metallography Equipment Bainmount Pneumatic
Bainmount Pneumatic Manual PRODUCT CODE: MPP006 Pneumatic operating system inter changeable moulds 1 1/4″ and 1 1/2″ Optional: Metric mould dimensions : 30 and 40 mm Manual water cooling system Digital Temperature Indicator and digital timer with LCD Display 1600 Watts Mould heater Buzzer indication for cooling cycles Power supply : 220V/110V Machine size: 530 […]
Metallography Equipment Bainmount P Auto
Bainmount P Auto PRODUCT CODE: MPP006A Pneumatic operating system Digital temperature indicator and digital timer with Display inter changeable moulds 1 1/4″ and 1 1/2″ Optional: Metric mould dimensions : 30 and 40 mm Automatic water cooling system Quick Ram return to speed up reloading and automatic cycle system Thermostatically controlled 1600 Watts Mould heater […]
Bainmount H Auto
Bainmount H Auto PRODUCT CODE: MPH007A Hydraulic automatic System Inter changeable moulds 1 1/4″, 1 1/2″ and 2″ dia Heater 1600 Watts, Single Phase LCD Parameter Indicator Ideal for Transparent, EPO & Bakelite moulds preparation Preset Programs & Data Storage of Mounting Parameters up to 25 Programs Automatic Water Cooling System Machine size: 430mm X 570mm […]
Bainmount Twin H Auto
Bainmount Twin H Auto PRODUCT CODE: MPHD007A Automatic Hydraulic mounting press with dual cylinders Inter changeable moulds 1 1/4″, 1 1/2″ and 2″ dia Heater 1600 Watts, Single Phase LCD Parameter Indicator Ideal for Transparent, EPO & Bakelite moulds preparation Preset Programs & Data Storage of Mounting Parameters up to 25 Programs Automatic Water Cooling System […]
Bainmount HD Auto
Bainmount HD Auto PRODUCT CODE: MPHAD007A Hydraulic mounting press with auto doser Inter changeable moulds 1 1/4″, 1 1/2″ and 2″ dia Heater 1600 Watts, Single Phase LCD Parameter Indicator Ideal for Transparent, EPO & Bakelite moulds preparation Preset Programs & Data Storage of Mounting Parameters up to 25 Programs Automatic Water Cooling System Machine size: […]
Bainline GP
Bainline GP PRODUCT CODE: BG010 Motor: 0.5 HP single phase 100 mm X 915 mm endless belt Simplified belt change and alignment mechanism Machine size : 560 X 350 X 230 mm Work piece area : 100 X 190 mm For Flat, coarse grinding prior to fine grinding. The specimens are to be ground in […]
Bainline Twin Wet
Bainline Twin Wet PRODUCT CODE: TBG011 Motor :1 HP 3 Phase motor, 1440 rpm 100 mm X 915 mm endless belt Simplified belt change and alignment mechanism Water cooling Machine size : 670 X 680 X 290 mm Work piece area : 100 X 240 mm For Flat, coarse grinding prior to fine grinding. The […]
Bainline – H
Bainline H PRODUCT CODE: BGH005 Motor :1 HP 3 Phase motor, 1440 rpm 100 mm X 1220 mm endless belt Simplified belt change and alignment mechanism Mechanical double speed design Machine size : 700 X 500 X 1100 mm Work piece area : 150 X 250 mm For Flat, coarse grinding prior to fine grinding. […]
Bainline – SSG
Bainline SSG PRODUCT CODE: SSG013 Motor :1 HP 3 Phase motor, 1440 rpm 14″ Vacuum disc Single speed 2880 rpm 1 HP vacuum system Machine size : 510 X 840 x 930 mm For Flat, coarse grinding prior to fine grinding. The specimens are to be ground in 60,80 or 120 grit after cutting / […]
Bainline – VSG
Bainline VSG PRODUCT CODE: VSG014 Motor :1 HP 3 Phase motor, 1440 rpm 14″ Vacuum disc Variable speed 100 to 2880 rpm 1 HP vacuum system. Machine size : 510 X 840 x 930 mm For Flat, coarse grinding prior to fine grinding. The specimens are to be ground in 60,80 or 120 grit after […]

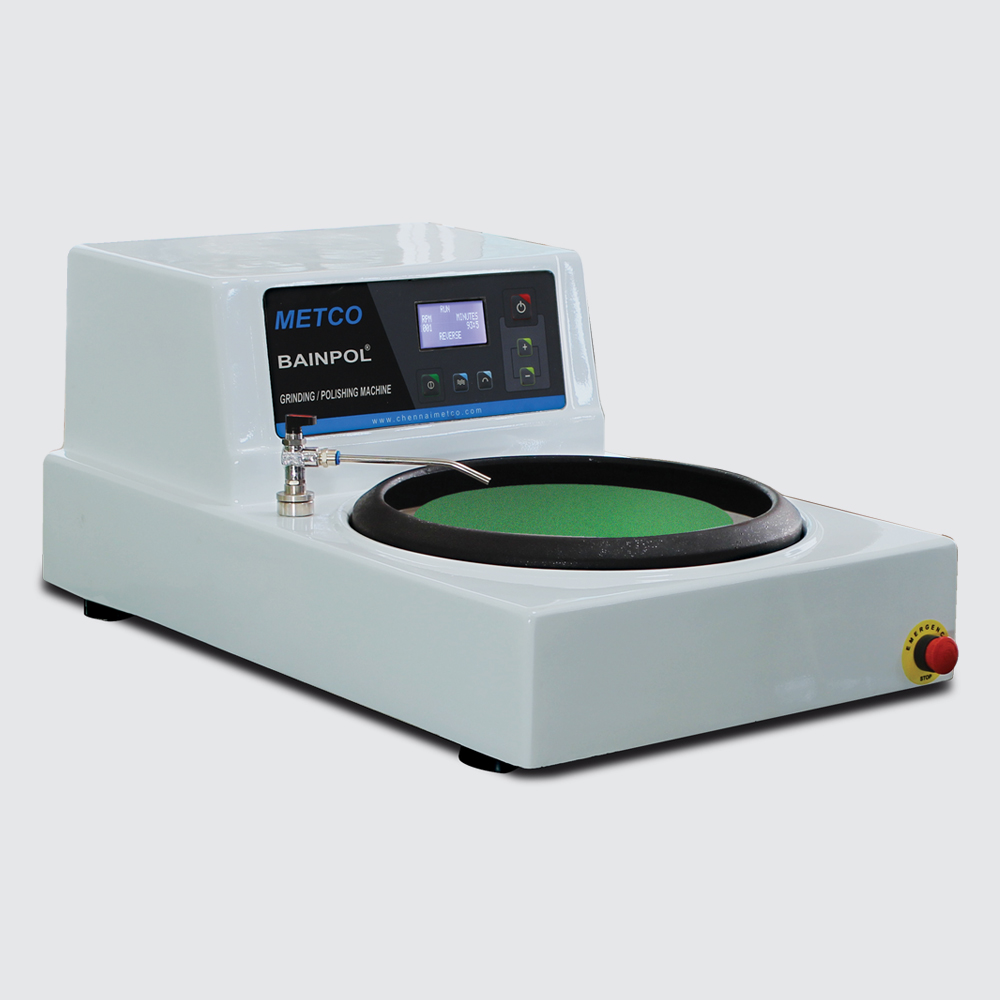

Bainpol VT (Single disc)
Bainpol VT (Single Disc Table Top Grinder/Polisher) PRODUCT CODE: PMV008 0.5 HP high torque AC motor single phase input 220v/50Hz or 110v/60Hz Imported AC Drive 8″ disc dia. standard 10″ & 12″ dia options Feather touch control 50 to 1000 RPM or 50 to 600 RPM Machine size :360 X 660 X 310 mm Fully moulded […]
Bainpol VTD (Double disc)
Bainpol VTD (Twin Disc Table Top Grinder/Polisher) PRODUCT CODE: PMV009 0.5 HP high torque AC motor single phase input 220v/50Hz or 110v/60Hz Imported AC Drive 8″ disc dia. standard 10″ & 12″ dia options Feather touch control 50 to 1000 RPM or 50 to 600 RPM Machine size :710 X 660 X 310 mm Fully moulded […]
