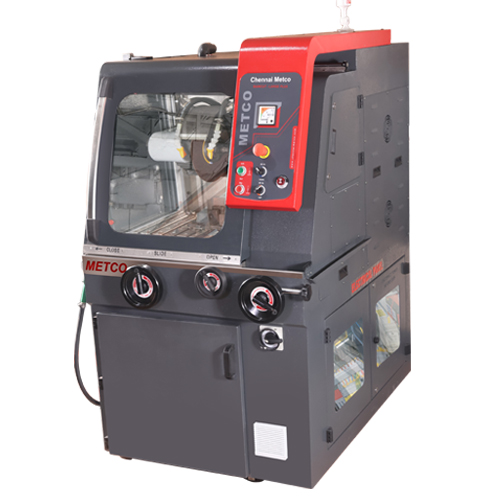

Metallography Equipment - Baincut Large Plus

PRODUCT CODE: CMLP015

Cutting capacity up to 130 mm dia
Powered by Motor 10 HP, 3 phase motor
Cut-off wheel dia 16" (400mm)
3 Axis user friendly movement (X,Y,Z)
Spindle speed 1800 - 1900 rpm
Table size : 254 mm X 355 mm X 2 Nos with 12 mm T-slot
Machine size: 1040mm X 1600mm X 1800mm (L x D x H)

Large plus heavy-duty cutting machine with integral construction. .

Key Features

Optional

Work holding device

Consumables

Technical Data

Key Features

Sliding Door

Left side Vent (Opening)

Side opening for longer components

Powerful LED

Powerful LED light in cutting chamber for clear illumination of Cutting process

Washing jet

To clean the Entire cutting area after cutting operation

Optional

Magnetic Separator

Magnet filter for filtering Coolant Sludge and send clean Coolant Oil to the Recirculation tank

Door safety Interlock

Additional Safety Feature where the Door cannot be opened unless the Cutting process is stopped

Laser line marking system

To know in advance the exact cutting area

Auto wash

To set the required time and leave the machine to clean automatically, So that you can save operator Cleaning time

Fume digester

This helps to recirculate the fume caused while cutting into coolant. Gives clear vision on cutting process and also avoid human health hazards

X-Movement

This helps to move the specimen and make parallel cut to get a slice

Coolant spilage tray

It helps while cutting extra lengthy samples

Variable speed system

Cutting Wheel RPM can be varied from 1000-3000 RPM

Loto Switch & Tag out

During Maintenance and Break Downs the Loto Switch can be switched off and locked with the tag key. This prevents from switching on the machine by mistake and avoids damage

Phase monitoring system

In the event of failure of one phase, this unit will stop the Machine and protects the motor from overheating and failure

Work Holding Device

Koppel Fixture (imported)

Special Fixture

Fixture that can be designed specifically for your components

Swivel Base

Consumables

Cutoff Wheel

Size (mm)

Uses

Application

HRC

RPM

CW009PR

400 X 31.75 X 3.2

Partially Reinforced

Suitable for case hardened and medium hard ferrous metals

UPTO 40

2800

CW0079FR

400 X 31.75 X 3.2

Fully Reinforced

Suitable for very hard ferrous material and tough cutting components

40 – 60

2800

CB01037A00

COOLANT TANK FILTER BAG

DUST COLLECTION

CFC008

Corrosion-Free Coolant Oil

Coolant for burn free cutting

Ratio: Mixed with demin water only 1:20 (coolant:water)
