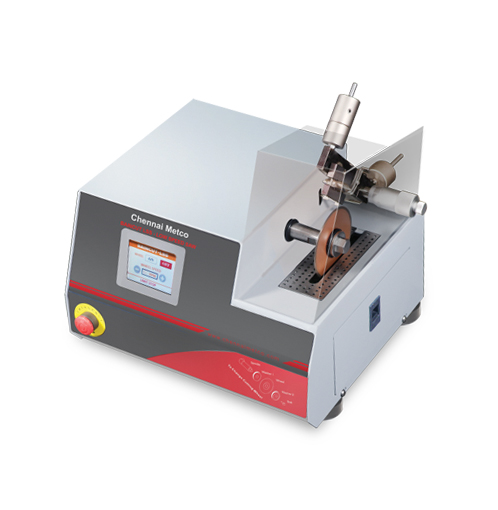

Baincut LSS
Metallography Equipment - Baincut LSS
Precision cut off machine
PRODUCT CODE: LSS003
- Cutting capacity up to 20 mm dia
- Cut-off wheel dia 5"
- Rotating fixer to increase double the capacity 40 mm
- Touch screen with pre set programs
- Spindle speed 600 rpm
- Machine size: 400mm X 300mm X 250mm
The precision section saw is designed for slicing all types of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.
Key Features
Optional
Work Holding Device
Height Adjustment Block (Imported)
Consumables
Diamond wheel ( above 60 HRC) : 100 mm X 0.3 mm X 12.7 mm
Diamond wheel : 100 mm X 0.3 mm X 12.7 mm
Diamond wheel ( above 60 HRC) : 125 mm X 0.4 mm X 12.7 mm
Diamond wheel : 125 mm X 0.4 mm X 12.7 mm
Isomet Oil
