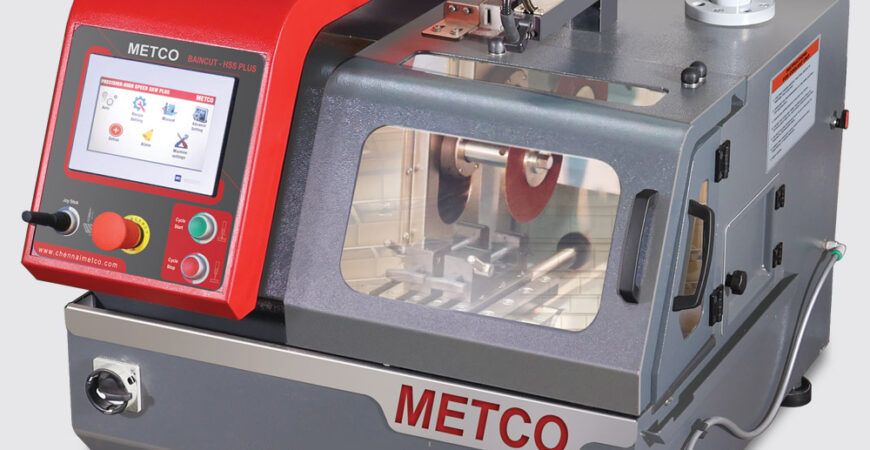

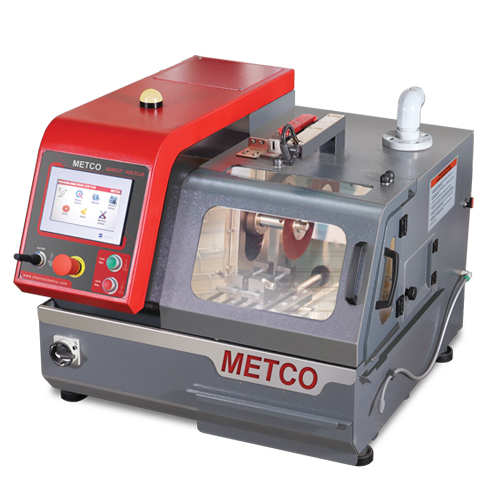

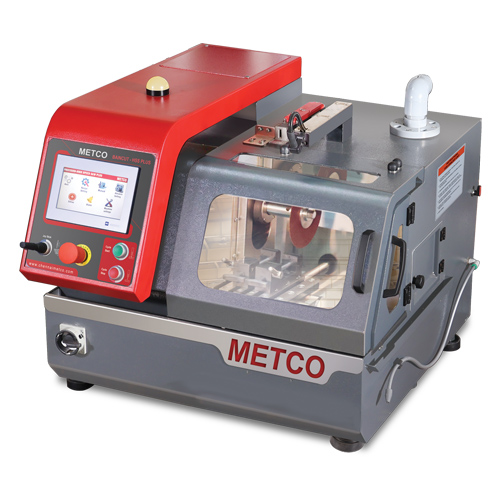

Baincut HSS Plus
Metallography Equipment - Baincut HSS Plus
Precision cut off machine
PRODUCT CODE: CMHSSP060
- Cutting capacity up to 50 mm dia
- "Z" Movement upto 40 mm
- 2 HP, 3 Phase Motor
- variable speed 100-5000 rpm
- Diamond or abrasive wheel upto 8" ( 200 mm) dia
- Machine size: 845 x 850 X 600 mm
The precision saw for cutting all types of materials with variable spindle speed. a must for slicing surface engineered components, Hard, sensitive applications. Preferred by research laboratories.
Key Features
Optional
Serial cutting facility
Work Holding Device
Four different types of Fixtures (mount chuck,Irregular sample, single saddle chuck and double saddle chuck)
Consumables
Diamond wafering blade : 100 mm X 0.3 mm X 12.7 mm CBN Blades
for hard and tough ferrous materials : 150 mm X 0.5 mm X 12.7 mm CBN Blades
for hard and tough ferrous materials : 200 mm X 1.1 mm X 31.75 mm CBN Blades
100 x 12.7 x 0.3 mm Diamond Blades For Non-Ferrous and Cast Irons above 40HRC
125 x 12.7 x 0.4 mm Diamond Blades For Non-Ferrous and Cast Irons above 40HRC/150
150 x 12.7x 0.5 mm Diamond Blades For Non-Ferrous and Cast Irons above 40HRC
175 x 12.7x 0.6 mm Diamond Blades For Non-Ferrous and Cast Irons above 40HRC
100 x 12.7 x 0.3 mm Diamond Blades For Non -Ferrous and Cast Irons below 40HRC
125 x 12.7 x 0.4 mm Diamond Blades For Non -Ferrous and Cast Irons below 40HRC
200 X 31.75 X 1.1 mm Diamond Blades For Non -Ferrous and Cast Irons below 40HRC
Abrasive Wheels : 205×25.4×0.8mm
coolant Oil
