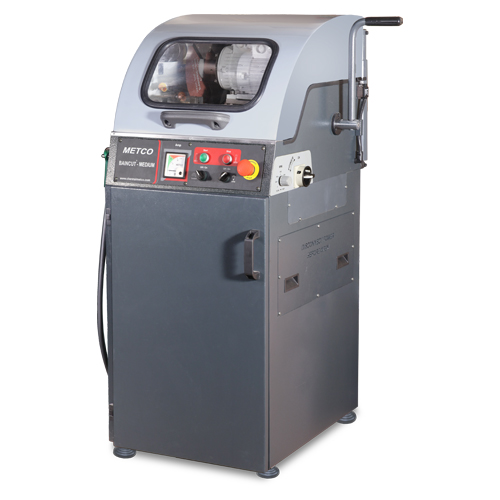

Metallography Equipment Baincut Medium

Baincut Medium

Metallography Equipment - Baincut Medium

PRODUCT CODE: CMM001

  • Cutting capacity up to 60 mm dia.
  • Powered by Motor 3 HP, 3 phase motor
  • Cut-off wheel dia 10" (250 mm)
  • Spindle speed 2800 rpm
  • Table size : 110 X 200 mm with 12 mm T-slot - 2 Nos
  • Machine size: 850mm X 750mm X 1550mm

A Popular general purpose cut-off machine with simple construction FRP hood. viewing window, internal illumination, re circulation coolant system, washing jet, safety limit switch. Chop cutting by lowering the wheel with the handle ( Z movement).

Key Features

Optional

Work holding device

Consumables

Technical Data

Key Features

Left side Vent (Opening)

Side opening for longer components

Cut off wheel coolant system

Washing jet

To clean the Entire cutting area after cutting operation

Door limit switch

Door will be locked, while cutting operation takes place

Optional

Auto wash

To set the required time and leave the machine to clean automatically, So that you can save operator Cleaning time

Door safety Interlock

Additional Safety Feature where the  Door cannot be opened unless the Cutting process is stopped

Twin Cutting

To cut a slice at one stroke

Variable Speed System

Cutting wheel RPM can be varied from 1000-3000 RPM

Loto Switch & Tag out

During maintenance and break downs the Loto switch can be switched off and locked with the tag key. This prevents from switching on the machine by mistake and avoids damage

Brake Motor System

Additional safety feature to stop the motor and the cutting wheel immediately once the cutting is stopped

Work Holding Device

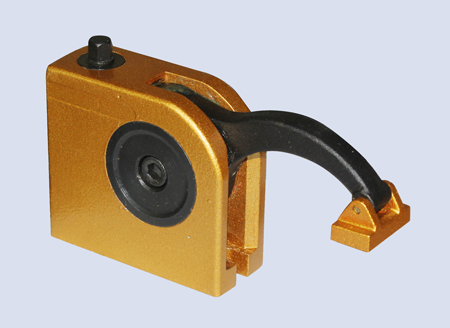

Koppel Fixture ( Imported)

Additional fixture to hold irregular shaped components

Special Fixture

Fixture that can be designed specifically for your components

Swivel Base

Consumables

Cutoff Wheel

Size (mm)

Uses

Application

HRC

RPM

CW002

250 X 31.75 X 1.5

Regular Cutoff Wheel

Ferrous Material such as Low Carbon to medium carbon

UPTO 40

4500

CW005

250 X 31.75 X 1.5

Regular Cutoff Wheel

Ferrous material such as high carbon and Hardened steel

40 – 60

4500

CWA006

250 X 31.75 X 1.5

Regular Cutoff Wheel

NON-Ferrous sample such as aluminum cast iron

40 – 60

4500

CB01037A00

COOLANT TANK FILTER BAG

DUST COLLECTION

CFC008

Corrosion-Free Coolant Oil

Coolant for burn free cutting

Ratio: Mixed with demin water only 1:20 (coolant:water)
