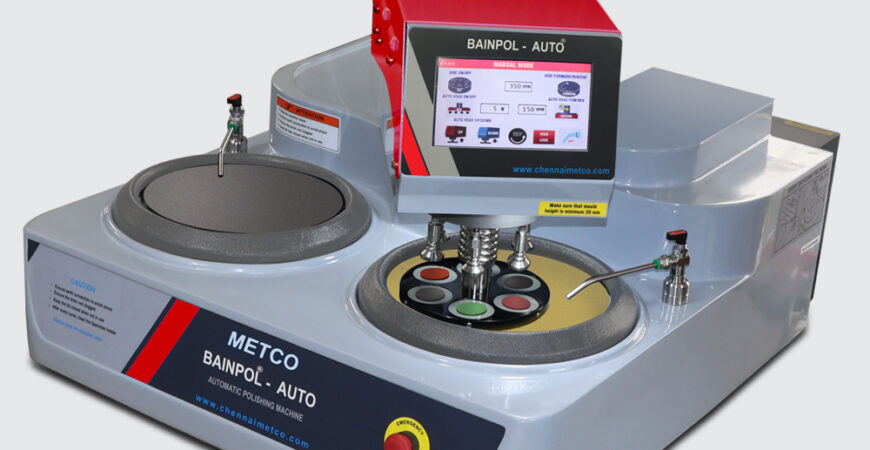

Bainpol VTD Auto ( Double disc)

Bainpol VTD auto

Bainpol VTD Auto (Double Disc)

PRODUCT CODE: PMV050

Can hold upto 6 moulds
Hold multiple moulds : 1 1/4" dia (std), 1 1/2" and 2"
Metric mould option 30,40,50 mm
Disc size 10" (12" Optional)
1 Hp high torque AC motor
Single phase input
Variable disc speed 50 to 150 rpm
Individual pressure specimen loading
Individual force 10 - 90N
Machine size: 850 x 500 x 600 mm

Fully automatic variable Speed

User friendly advanced LCD touch screen

Setting of head up/down. disc Direction, Head direction, head speed, individual force can be controlled through the touch screen

Ideal choice for the laboratories looking for quality and reproducible results

Key Features

Optional

Consumables

Technical Data

Key Features

User friendly advanced LCD touch screen

Setting of head up/down. disc Direction, Head direction, head speed, individual force can be controlled through the touch screen

7” Advanced PLC based Touch Screen System

Pre Set Programming

Data base Storage system up to 50

Can hold upto 6 moulds

Setting of head up/down. disc Direction, Head direction, head speed, individual force can be controlled through the touch screen

Individual pressure specimen loading

Setting of head up/down. disc Direction, Head direction, head speed, individual force can be controlled through the touch screen

Automatic Specimen Head

180 Watt Independent Polishing Head Motor

Polisher Head Variable Speed : 30 to 150 RPM

1 ¼” Specimen Holder comes with the Machines as Standard

Motorized Movement – Up & Down

Clockwise & Anticlockwise rotation

Corrosion Resistant wash bowl free flow drain

Flexible water jet with control valve

Retractable water hose for easy cleaning bowl wash

Easy Interchangeable Aluminium Disc

Safety emergency switch

The working disc can be operated clockwise/counter clockwise.

Automatic Water cooling system

Optional

Dosing Unit

Automatic / Manual with variable Dosing Unit (3 x Diamond Suspension and 1 x Lubricant)

Specimen Holder

1″ and 2″ Specimen holder

Specimen Holder spacer

30 mm,40 mm,50 mm Specimen holder spacer

Silent air Compressor

A simple portable compressor provides compressed air at the location of your need.

Ultrasonic cleaner

The perfect cleaner for your metallography specimen used for final cleaning or intermediate cleaning during grinding / polishing stage.

Air Drier

A forceful hot drier for multiple specimens after polishing. specially designed to speed up the drying process. Heat adjustable knob is provided.

Consumables

Magnetic substrate disc

to be fixed on the aluminium disc

Ferromagnetic carrier sheet

to be placed on the magnetic substrate disc

Diamond embedded discs

8″/10″/12″ resin bonded – various standard grit sizes
8″/10″/12″ metal bonded – 80, 120, 220, 600, 1200

Emery Sheets

8″/10″/14″ emery sheet with / without PSA

Grit size ranges are 220,320,400,600,800,1000,1200,1500

Polishing cloth

10″/12″/14″ billiards cloth, velvet cloth, micro cloth, selvyt cloth (without PSA)
8″/10″/12″ velvet black, velvet brown (with PSA)

Polishing Compounds

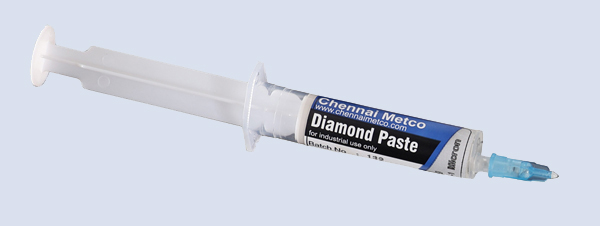

Mono/poly-crystalline diamond paste: 6 µm, 3 µm, 1 µm, 0.25 µm
Mono/poly-crystalline diamond suspension: 9 µm, 6 µm, 3 µm, 1 µm, 0.5 µm, 0.25 µm
Alumina suspension: 1 µm, 0.3 µm, 0.05 µm

Lubricant

Aerosol spray/liquid
Water based, oil based, alcohol based lubricants
