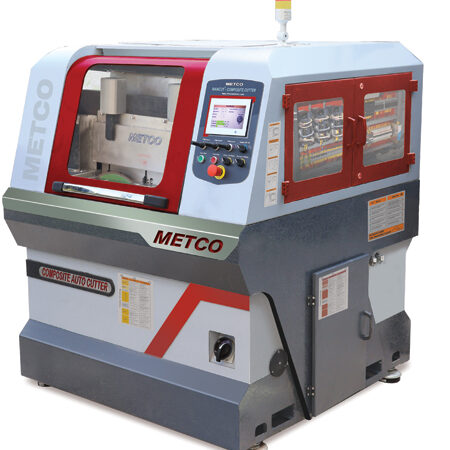

Fully Automatic
Composite Cutter
Sturdy floor model cutter for composite plate, Automatic composite plate feeding with servo system, Corrosion resistant chamber for a long product lifetime
-
Cutting capacity ( Composite Plate 500mmX500 mm )
Material Thickness / Cut depth 0 – 40 mm
Cut-off Wheel dia 12″ ( 305 mm)
Spindle Speed 100-5000 rpm (Variable System)
3HP (2.1 k.w), 3 Phase Motor
Automatic cutting Z Movement system with Servo System
Automatic Composite Plate Feeding with Servo System
Programmable Cut-off Wheel Depth Of Up To 60 mm
Variable feed rates for Cutting
Over All Cross Cut Travel X Axis 700 mm
Fence Travel Y Axis 550 mm
Pneumatic clamping system
-
Display System
Advanced Touch Screen Panel with Cycle Start, LED Light, Emergency Stop, Start Button with Door Safety Interlock system
PLC with Advance Graphical Touch Screen Display
Pre Set Programming & Data Storage up to 100 programs
Coolant System
Easy Flow Cutting Chamber
Coolant drain System
Coolant jets to provide optimum cooling
Powerful LED light in cutting chamber for clear illumination of Cutting process
Voltage: 415V/50 Hz (R+Y+B+N+E)
-
Machine Size: L 1350 mm x B 1400mm x H 1650 mm
