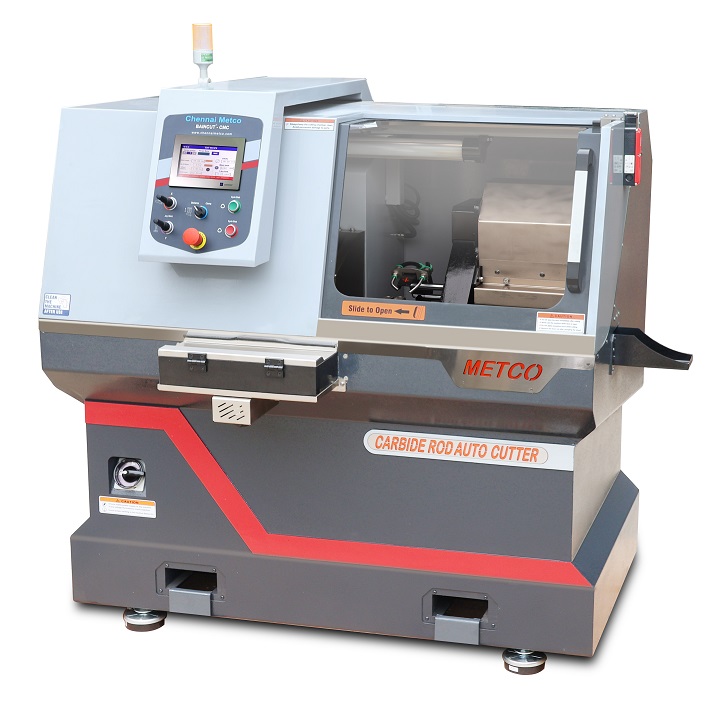

Carbide Cutter

Description

Product Description

Carbide rods/Hard rods

Sectioning

In modern manufacturing cutting the carbide rods HSS, and other hard rods is primary step in tools/parts production, specially made cutting machines are essential to accomplish sectioning to desired length.

Machines are available to suit the production needs depending on customer situation. From simple manual, semi automatic to fully automatic.

All the machines offer proper V block holding, Length setting, Coolant delivery, Filtration etc.,

• Sturdy floor model cutter, cutting capacity 3 to 40 mm dia
• Carbide rod blank length 50 mm to 400mm
• Diamond wheel dia 8″ (200 mm)
• Spindle speed 100- 4000 RPM ( Variable System)
• Spindle Dia 31.75 mm ( 25.4 mm Optional)
• 5HP (3.5 KW), 3 Phase Motor
• Automatic cutting by Z movement with Servo System
• Automatic carbide rod loading
• Automatic carbide rod length positioning
• Variable feed rates for cutting carbide rod
• Automatic individual pneumatic clamping system
• PLC with advanced colour graphical touch screen
