Baincut SCCM

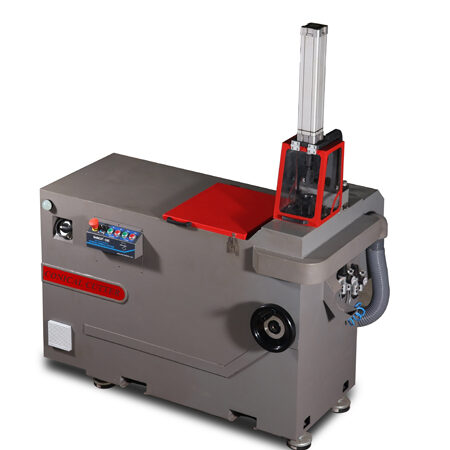

Conical Sample Cutter
Solid Welded Steel Construction with Floor Model Conical Cutter for sectioning Spectro Samples
-
10HP (7.5 k.w) 3 Phase AC Motor
Cut-off Wheel dia 16”(400mm)
Sample Size : dia 50mm x 160mm with conical Design without affecting Spectro properties
Super Alloy Steel Spindle with 2880 rpm
Vacuum Motor 2 Hp( 1.5Kw )3 Phase, 2880 rpm, Ac Motor with Dust Collector for Extracting the dust
Automatic Clamping and Ejection Operation and Can be operated with frequent on-off or continuously with overload protection.
Conical Sample Holder with 2 Hp (1.5kw) Rotary chuck
Revolving cut-off wheel is horizontally feed against the rotating sample and Very easy to operate Hand Wheel Design
-
Air Cooling through nozzle, thereby no water contamination. Safety To ensure the safety of operator
The cut sample falls into the through a chute and collected for Cutting Samples
Tower lamp Indicator is also provided for safety Operation.
Safety door with Limit Switch
Voltage: 415V/50 Hz (R+Y+B+N+E)
Machine Size: 1450 x 650 x 1900 mm (L x D x H)
Machine Color: Enclosures RAL : 3002 , Base & Stand RAL 7039
