Description
Product Description

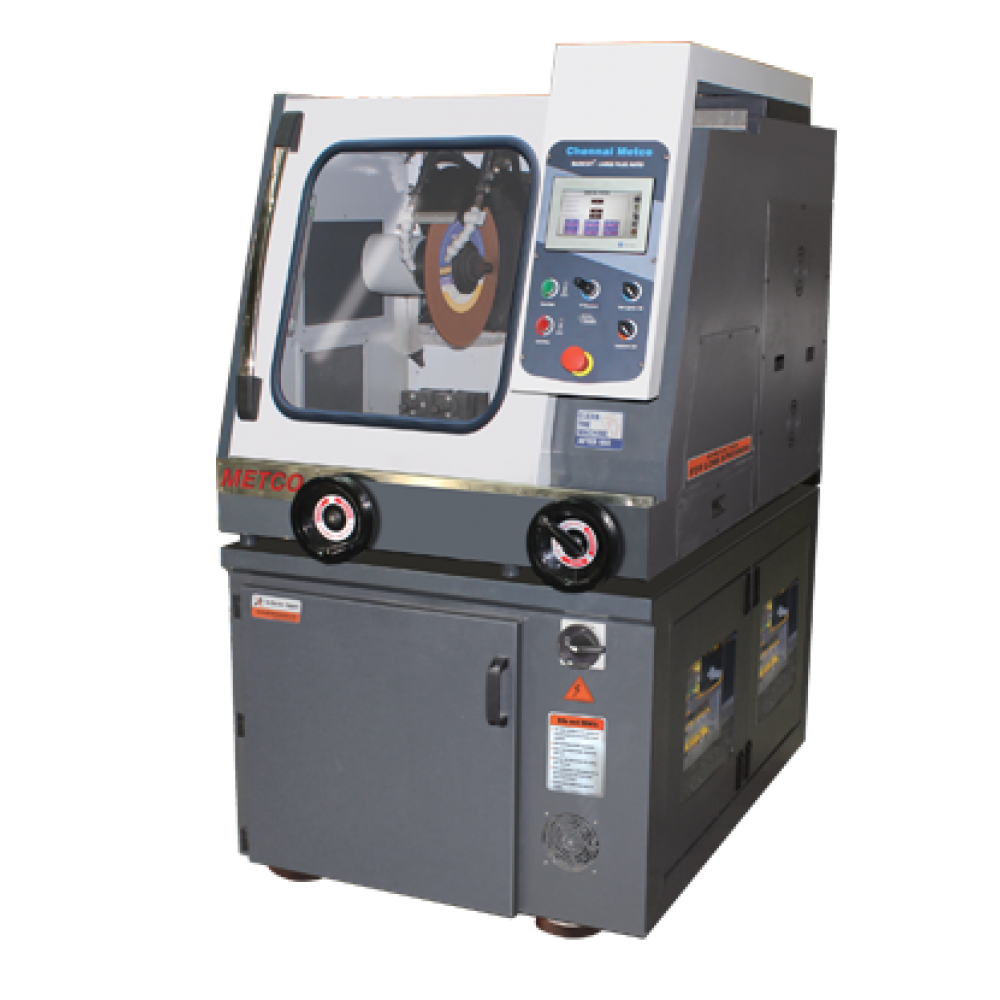

Automatic Large plus heavy-duty cutting machine with Integral construction. Standard
Y automation. Pulse cutting for burn free cutting. Preset parameters for consistency.
- Cutting Capacity about 130 mm dia
- Powered by10 HP (7.5 kw), 3 Phase Motor
- Three axis movement ( X,Y and Z)
- Cutting action Y Movement Automatic (longitudinal)
- Cut-off wheel dia 16” (400 mm)
- Inbuilt movable – re circulation coolant tank
- Heavy duty Screw Vise
- Side opening for longer components
- Table size : 400 x 400 mm with 8 mm T-Slot
- Spindle speed 2200 rpm (variable speed at option)
- Serial cutting (Option)
- Electronic brake ( Option)
- Door interlock ( Option)
- Z – Movement Auto (Option)
- Power : 415v / 50 Hz or 220v / 60 Hz
- Machine Size: 1340mm x 1600mm x 1800 mm
