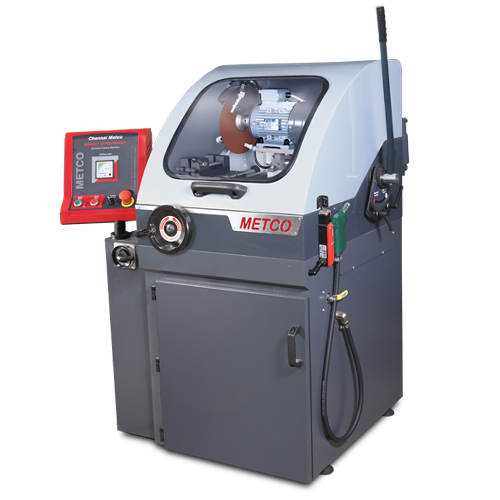

Baincut UM
Metallography Equipment - Baincut UM
PRODUCT CODE: CMU002
- Cutting capacity up to 80 mm dia
- Powered by Motor 5 HP, 3 phase motor
- Cut-off wheel dia 12" (300 mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 2800 rpm
- Table size : 260 X 260 mm with 10 mm T-slot
- Machine size: 1100mm X 1300mm X 1640 mm (L x D x H)
A sturdy floor model general purpose cutter. Large space in the cutting zone offers flexibility to use wide variety of fixtures. Cutting action possible by lowering the arm ( Z movement) and longitudinal table movement (Y axis) through cutting plane (Y- movement). Additional side movement (X – movement) option is of advantage. Lockable Z movement wheel position offers extra convenience. Suitable for variety of applications including small gears, medium sized auto components and shafts.
Key Features
Optional
Work Holding Device
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW003
300 X 31.75 X 2.0
Regular Cutting
Ferrous Material
such as Low carbon
to medium carbon
40 HRC
3800
CW006
300 X 31.75 X 2.0
Hard Steel Cutting
Ferrous Material
such as High carbon
and Hardened Steel
40 – 50 HRC
3800
CB01037A00
Coolant tank filter bag
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
