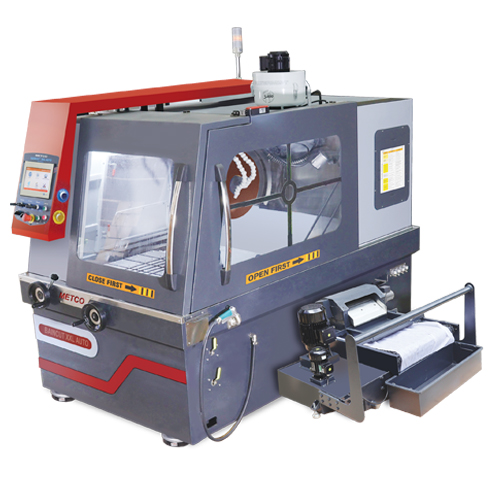

Baincut XXL Auto
Metallography Equipment - Baincut XXL Auto
PRODUCT CODE: CMXXL017A
- Cutting capacity up to 180 mm dia8
- Powered by Motor 30 HP, 3 phase motor
- Cut-off wheel dia 20" (500mm)
- 3 Axis user friendly movement (X,Y,Z)
- Variable speed 1000 - 3000 rpm
- Coolant tank with 200L capacity
- Table 500 X 500 mm with 12 mm T-slot
- Machine Size: 2100 X 2150 X 2400 mm

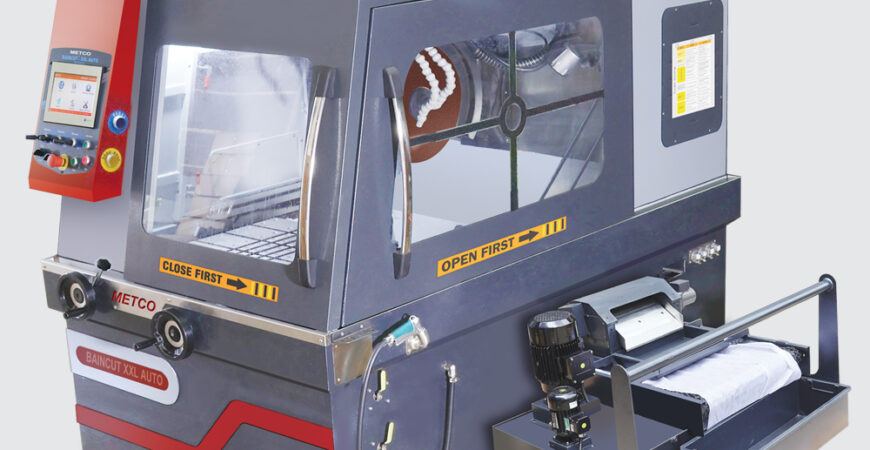

Automatic bigger sized fully loaded cutting machine with top Closed design. two side sliding door provides voluminous internal space to section big components and also easy access. Standard Z & Y automation. Pulse cutting, step cutting modes for burn free cutting. Variable spindle speed included.
Key Features
Optional
Static paper filter system
Used to filter the Coolant Dust up to 50 to 100 micron level and send clean coolant to the Re circulation tank
High Pressure cooling System
This enables the coolant to reach the inner cutting area with higher velocity. Mostly used for cooling sensitive components
Work Holding Device
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Koppel fixture height adjustment block ( imported)
Height Adjuster for the Koppel Fixture to additional 60 mm for different diametrical components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW013S
500 X 31.75 X 3.2
Partially Reinforced
For extra hard ferrous metals and heavy-duty components
UPTO 40-60 HRC
2200
CW015FR
500 X 31.75 X 3.2
Fully Reinforced
Suitable for very hard ferrous material and tough cutting components
40 HRC
2200
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
