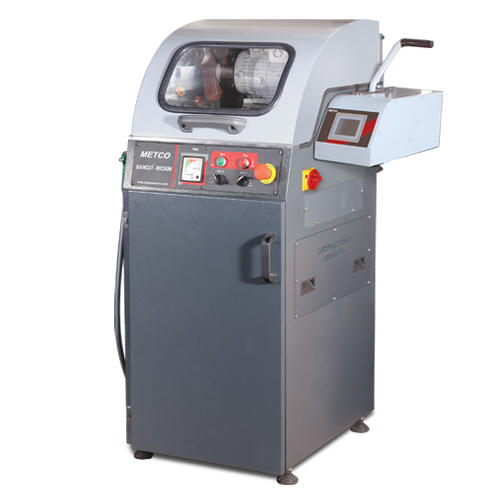

Baincut Medium Auto
Abrasive Cut Off Machine
Metallography Equipment -Baincut Medium Auto
PRODUCT CODE: CMM001A
- Cutting capacity up to 60 mm dia
- Powered by Motor 3 HP, 3 phase motor
- Cut-off wheel dia 10" (250 mm)
- Spindle speed 2800 rpm
- Table size :110 X 200 mm with 10 mm T-slot - Two Nos
- Machine size: 1100 mm X 750 mm X 1550 mm
Sturdy floor model cutter for Metallographic sectioning Metals, Ceramic and mineral samples. PLC with graphical touch screen display, viewing window, internal illumination, re circulation coolant system, washing jet, safety limit switch.
Key Features
Optional
Work Holding Device
Cam Vise Set
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW002
250 X 31.75 X 1.5
Regular Cutoff Wheel
Ferrous Material such as Low Carbon to medium carbon
UPTO 40
4500
CW005
250 X 31.75 X 1.5
Regular Cutoff Wheel
Ferrous material such as high carbon and Hardened steel
40 – 60
4500
CWA006
250 X 31.75 X 1.5
Regular Cutoff Wheel
NON-Ferrous sample such as aluminum cast iron
40 – 60
4500
CB01037A00
COOLANT TANK FILTER BAG
DUST COLLECTION
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
